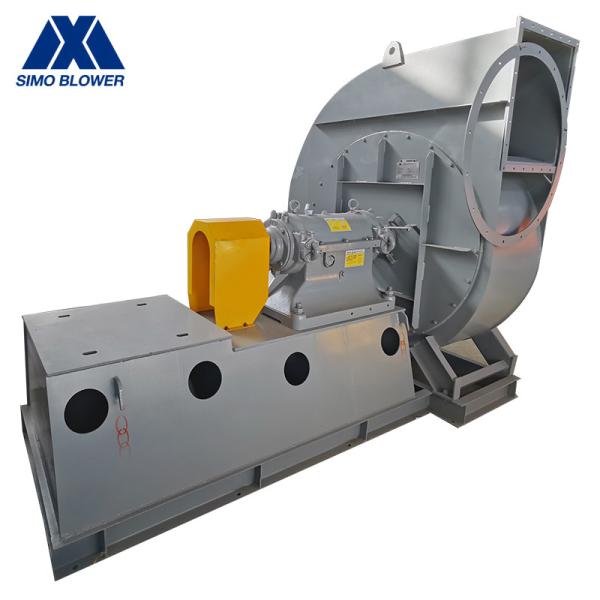

Explosionproof High Pressure Centrifugal Fan Fluidized Bed Boiler

  • 1
  • 2
  • 3

Brand Name : SIMO

Model Number : SIMO Blower 9-10

Certification : CE, ISO9001:2008,TUV

Place of Origin : Henan China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, Payment Term Is Negotiable

Supply Ability : 500 Sets Per Month

Delivery Time : 15-35 Days

Packaging Details : Export Wooden Case Packing, Steel pallet Packing

Voltage : 380V/415V/440V/660V/6KV/10KV

Material : Carbon Steel/Alloy Steel/Stainless Steel

Impeller : Dynamic Balanced

Motor : SIEMENS/ABB/By your demand

Noise : Optional

Medium : Clean air/Dusty air

Contact Now

Explosionproof High Pressure Centrifugal Fan Fluidized Bed Boiler

Introduction

The 9-10 series high pressure fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.

The fan adopts advanced technology. The design of backward curved centrifugal wheel is optimized by means of CFD hydro-field simulating. The design is more accordant with the aerodynamic characteristics, high efficiency, and stable airflow.

Detail introduction

Each wheel is subjected to dynamic balance test. The balancing level is kept at G4.0 (Typical products are balanced to G6.3 only). Durable, stable and quietness are guaranteed.

Technical data

series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-10 8D 14502900 323115034 329714287 7.5110
9D 1450 41014597 469510717 1522
10D 1450 49585840 644015455 3037
11.2D 9601450 27057364 599021713 1575
12.5D 9601450 39759229 832730186 22110
14D 9601450 424911668 1169942409 37220
16D 9601450 557515425 1746363305 75315


Product Features

The fan shaft power will not exceed the motor rated power regardless the operation point of the stable working range. Customers can use it without any worries.

FAQ


1,What parameters need to be provided when you design the industrial centrifugal fans?

A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

Explosionproof High Pressure Centrifugal Fan Fluidized Bed Boiler

Explosionproof High Pressure Centrifugal Fan Fluidized Bed Boiler

Explosionproof High Pressure Centrifugal Fan Fluidized Bed Boiler
